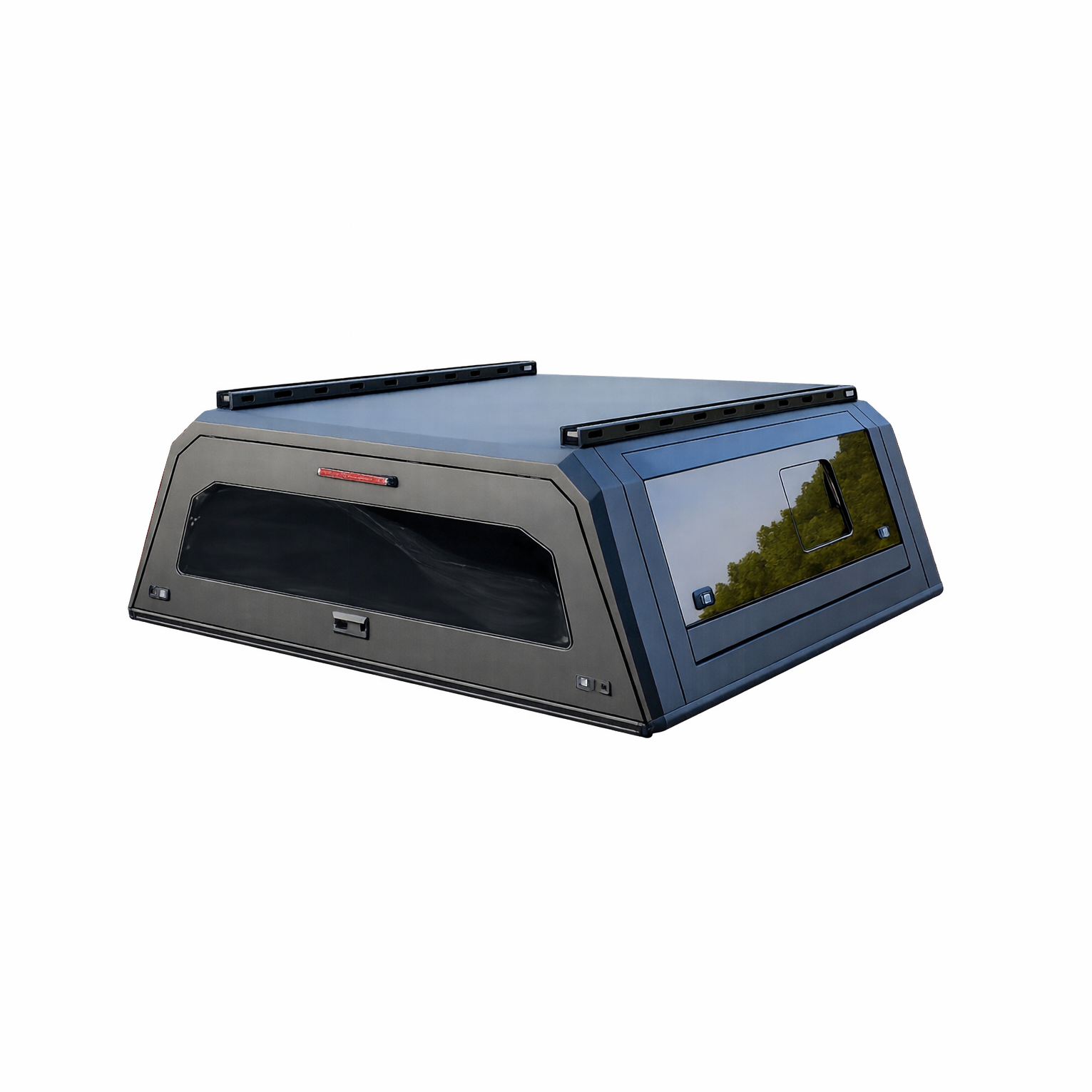

Elite Truck Cap For Ford
The Elite Truck Cap for Ford F-150, F-250, F-350, Ranger & Maverick is a precision-engineered canopy system designed specifically for Ford's full pickup lineup, including the F-150, F-150 Raptor, F-150 Lightning, F-250, F-350, Ranger, and Maverick, featuring a concealed hinge architecture with hinge gaps refined to approximately 0.28 inches at the rear and 0.2 inches on the sides — delivering a cleaner, more seamless exterior finish than conventional exposed-hinge systems and combining refined aesthetics with serious load-bearing performance.
✅ Perfect Fit: Designed exclusively for the Ford F-150 / Raptor (2010–2026), F-150 Lightning (2022–2026), F-250 / F-350 (2017–2026), Ranger (2019–2023), and Maverick (2022–2026). Available in multiple bed sizes — see weight specifications table for your exact fitment.
Roof Load Performance Ratings
| Material | Dynamic Load | Static Load |
|---|---|---|
| Aluminum Alloy | 470 lbs | 1,020 lbs |
| Stainless Steel | 540 lbs | 1,150 lbs |
Weight Specifications
| Model & Year | Bed Size | Aluminum Alloy | Stainless Steel |
|---|---|---|---|
| Ford F-150 / Raptor 2021–2026 | 5' 5" Bed | 198 lbs | 276 lbs |
| Ford F-150 2021–2026 | 6' 5" Bed | 212 lbs | 298 lbs |
| Ford F-150 / Raptor 2015–2020 | 5' 5" Bed | 198 lbs | 276 lbs |
| Ford F-150 2015–2020 | 6' 5" Bed | 212 lbs | 298 lbs |
| Ford F-150 Raptor 2010–2014 | 5' 5" Bed | 196 lbs | 275 lbs |
| Ford F-250 / F-350 2023–2026 | 6' 8" Bed | 223 lbs | 329 lbs |
| Ford F-250 / F-350 2017–2022 | 6' 8" Bed | 223 lbs | 329 lbs |
| Ford Ranger 2019–2023 (Crew Cab) | 5' Bed | 150 lbs | 234 lbs |
| Ford Ranger 2024–2026 (Crew Cab) | 5' Bed | 150 lbs | 234 lbs |
| Ford Ranger 2019–2023 (Extended Cab) | 6' Bed | 181 lbs | 262 lbs |
| Ford F-150 Lightning 2022–2026 | 5' 7" Bed | 201 lbs | 291 lbs |
| Ford Maverick 2022–2026 | 4' 5" Bed | 116 lbs | 199 lbs |
Key Features
- Concealed Hinge Architecture — Hinge gaps refined to 0.28" at the rear and 0.2" on the sides. Delivers a cleaner, more seamless exterior finish than standard exposed-hinge systems with reduced wind noise.
- Full 360° Tempered Glass Construction — Tempered glass on all four sides with wing-style side panels and tinted sliding windows for privacy, visibility, and natural light inside the cargo area.
- Tinted Sliding Side Windows — Built-in sliding vents provide airflow control, ventilation, and privacy without opening the doors.
- Front Sliding Cab-Access Window — Allows direct communication between the cargo area and the driver cabin without exiting the vehicle.
- Single-Key Security System — Push-button locking on all three doors. One key operates everything.
- High-Grade Weatherproof Sealing — Engineered to prevent water, dust, and snow ingress in all conditions.

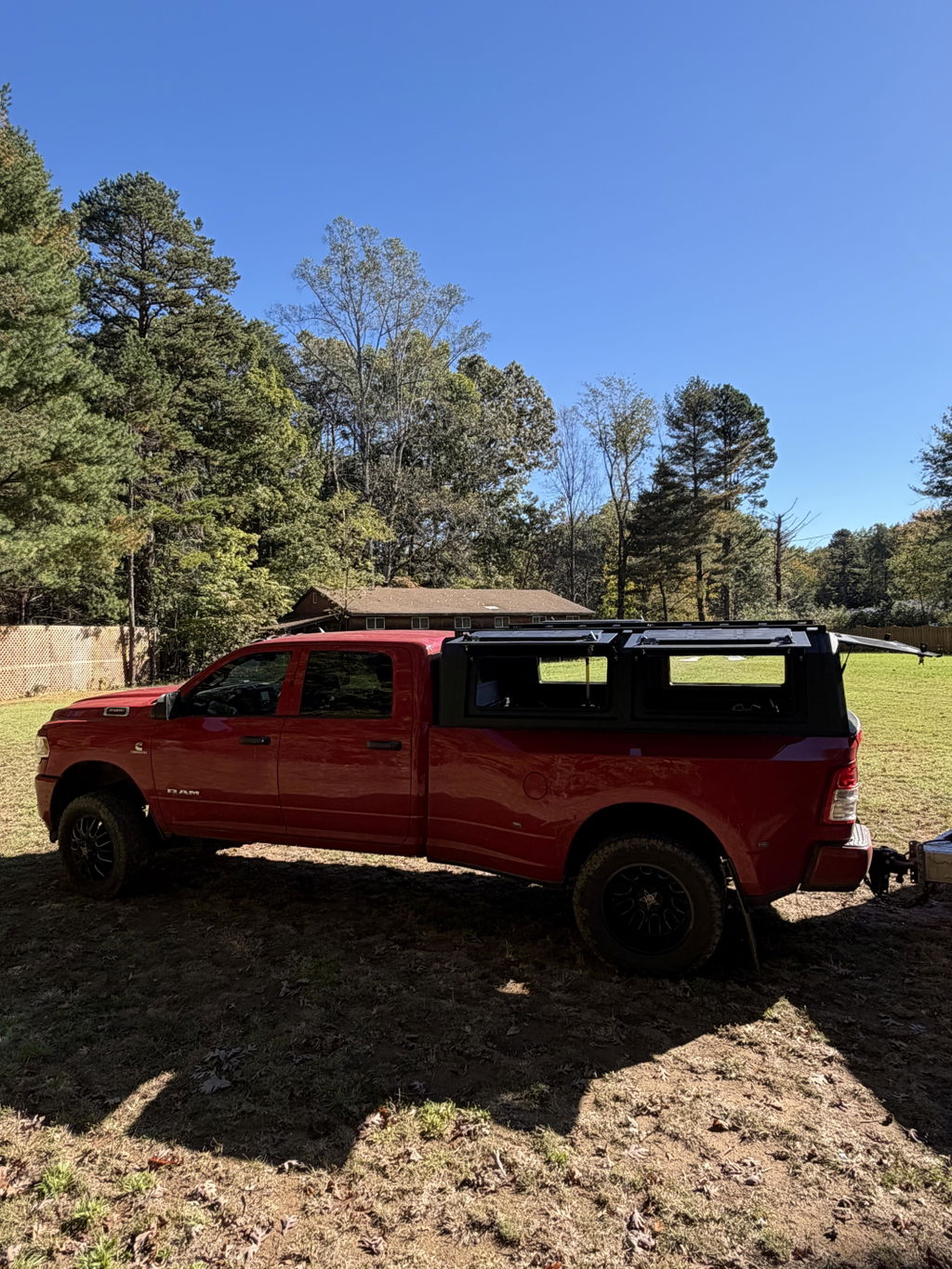

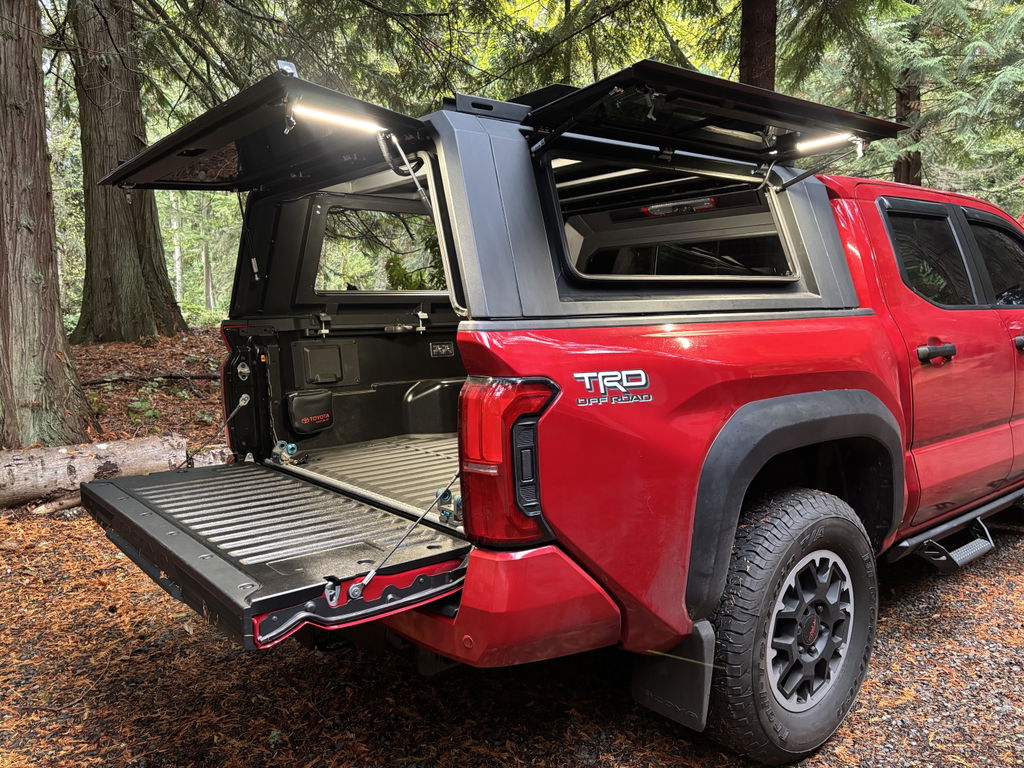

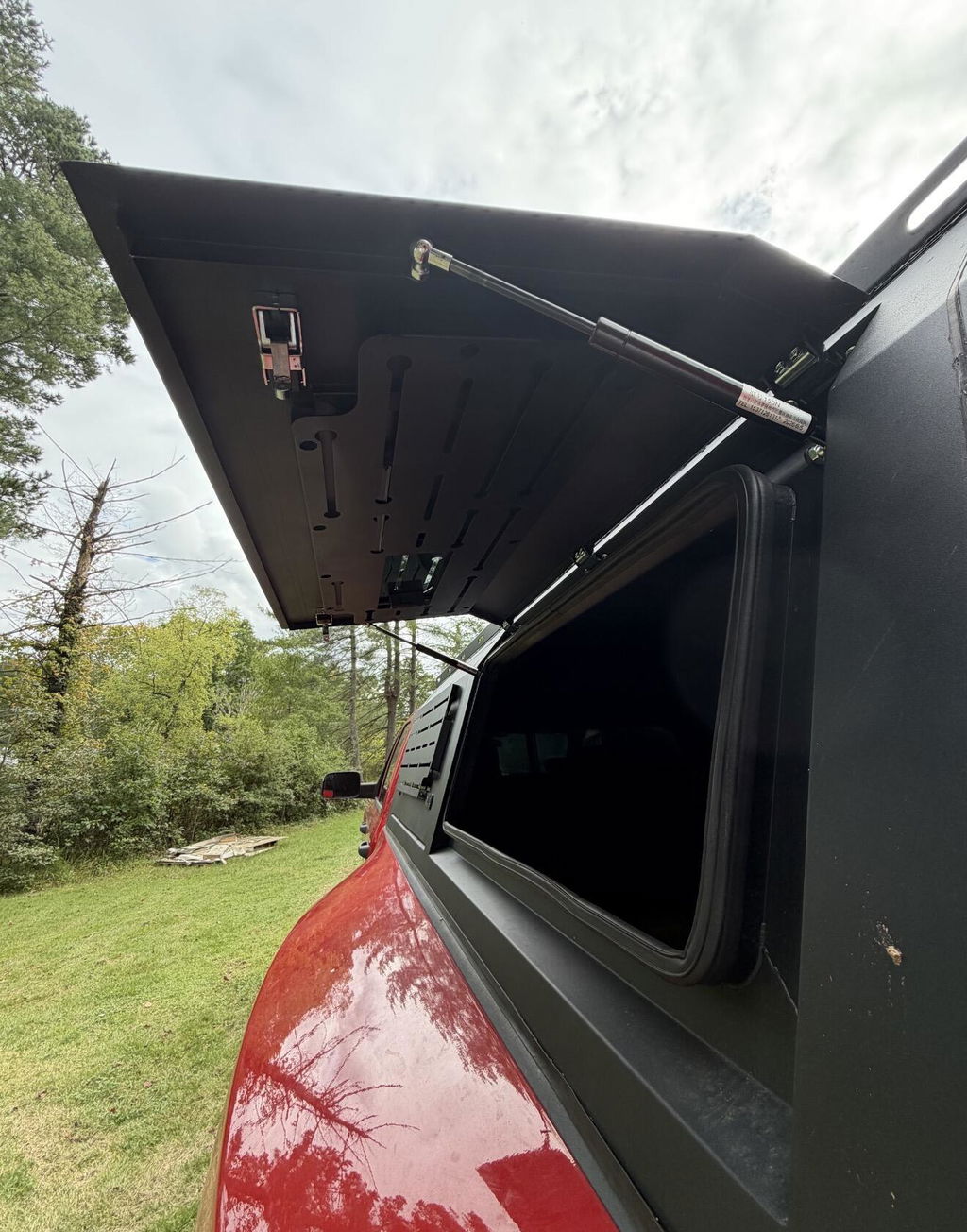

- Gull-Wing Side Doors — Extended opening height improves access to the upper sleeping and cargo platform, making loading and interior setup significantly easier.
- Aerodynamic Design — Reduces drag and improves fuel efficiency at highway speeds.
- Hydraulic Strut Doors — All three access panels open and close smoothly with hydraulic support struts.

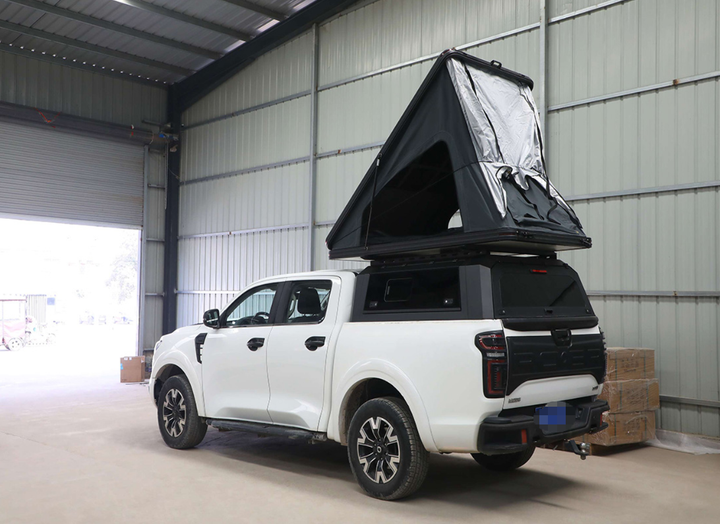

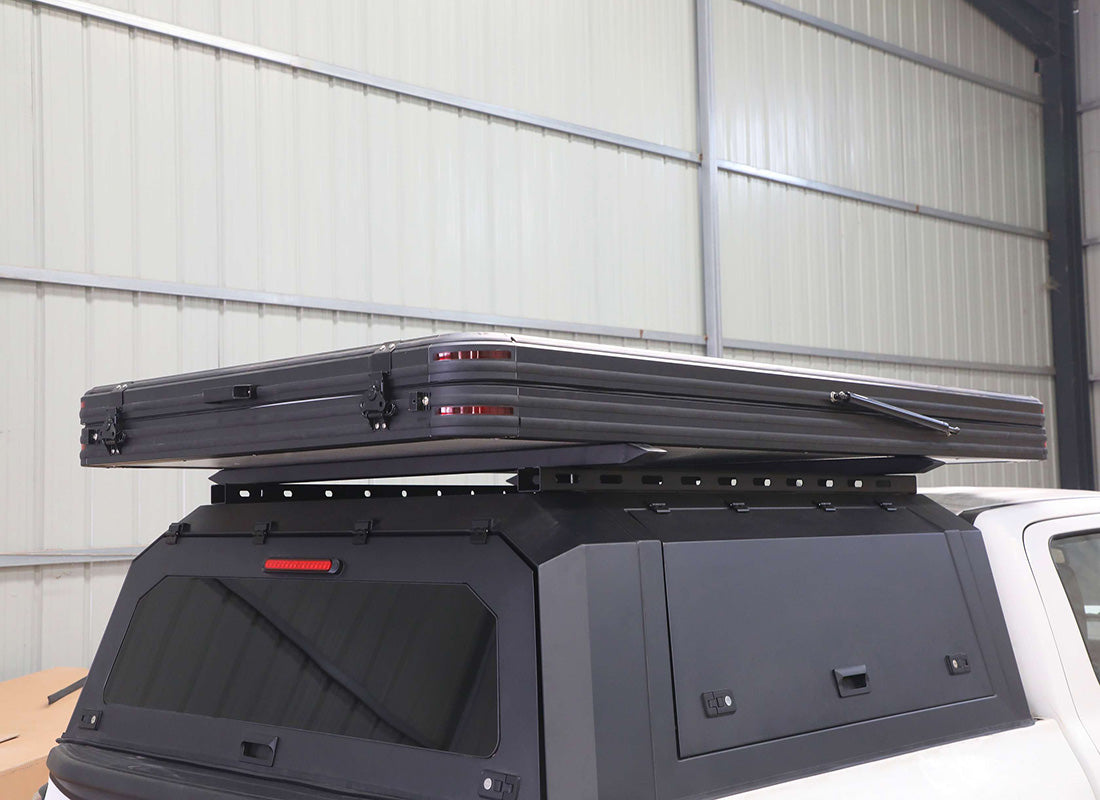

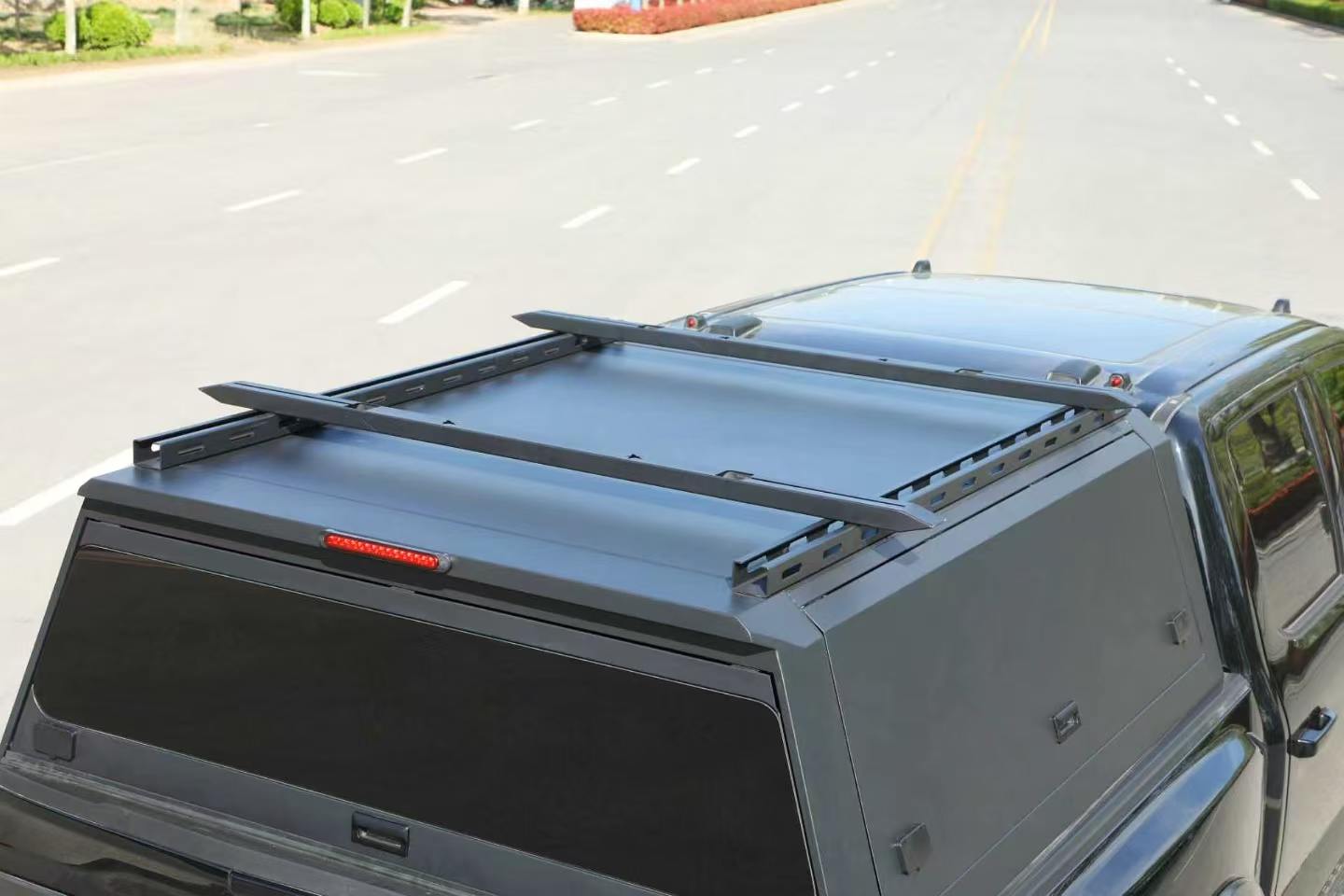

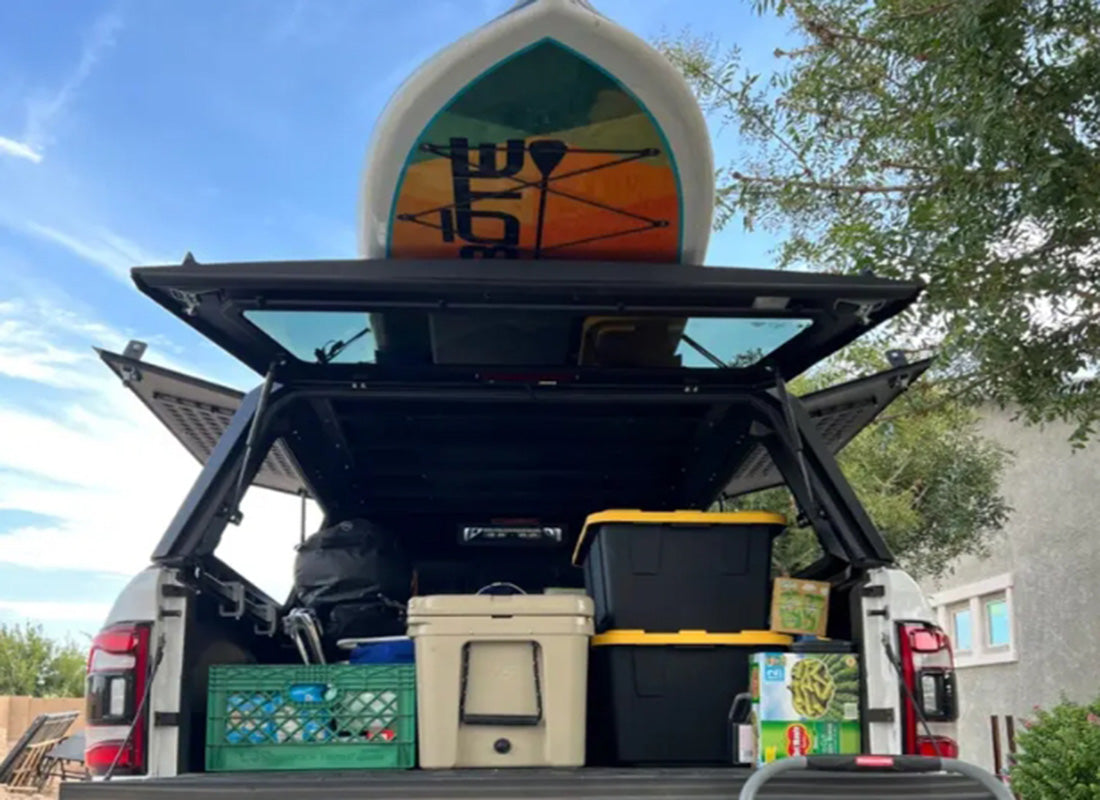

- Modular Roof Rail System — Supports rooftop tents, kayaks, bikes, ladders, and cargo racks. Compatible with most standard roof rack systems.
- No-Drill Clamp Installation — Clamp-based mounting with no drilling required. Individual components can be replaced if damaged.

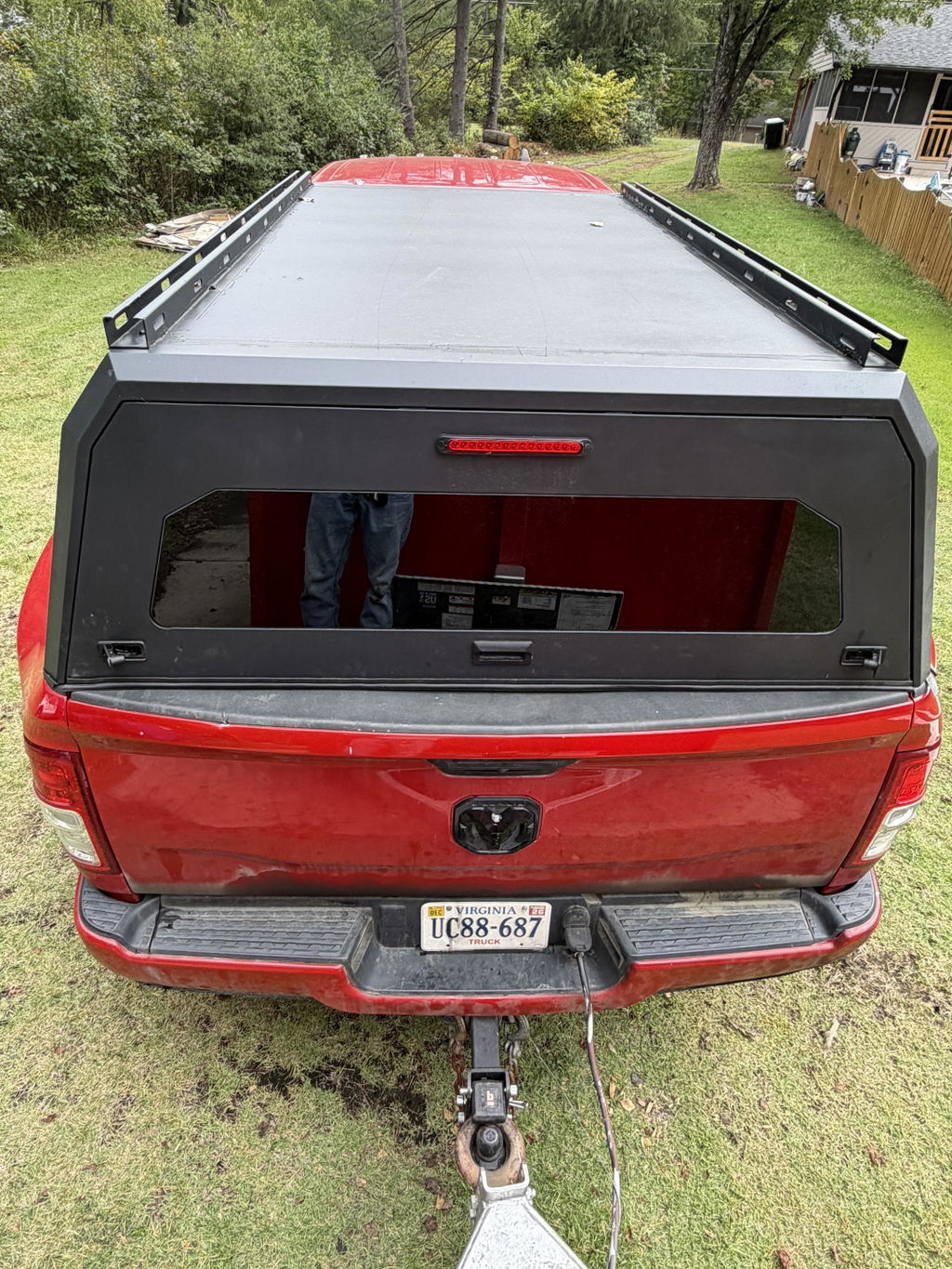

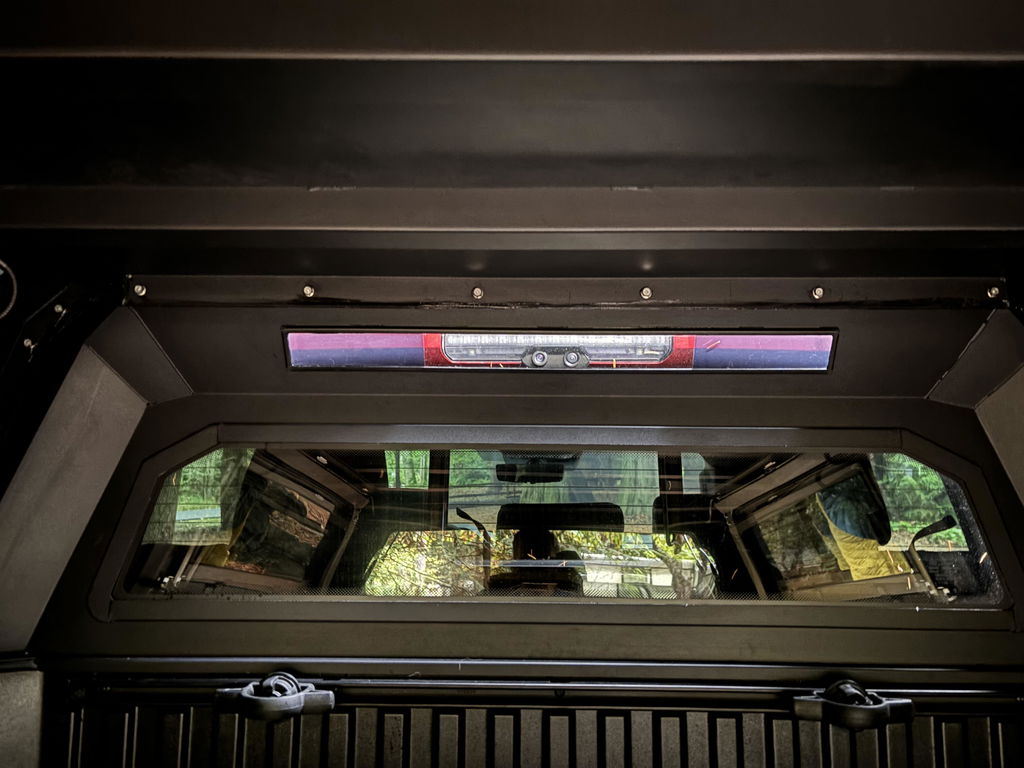

- Integrated Brake Light — Built-in third brake light for road safety and rear visibility in all conditions.
Install & Removal
- ✅ Full installation in approximately 1 hour
- ✅ Complete removal in approximately 15 minutes
- ✅ No drilling required — zero damage to your vehicle
Installation Guide
All truck caps are shipped directly to customers and installed after purchase. Installation is straightforward and requires no drilling or permanent modifications to your vehicle. Please follow the official installation tutorial for your specific product series — installation procedures vary across product lines, so it is important to use the correct video for your cap.
▶ Watch Official Installation Tutorial
