Fortress Truck Cap For Ford
Fortress Truck Cap for Ford F-150, F-250, F-350, Ranger & Maverick — Maximum Protection, Built for the Hardest Jobs.
The Fortress Truck Cap is a heavy-duty, all-metal canopy system designed specifically for Ford's full pickup lineup, including the F-150, F-150 Raptor, F-150 Lightning, F-250, F-350, Ranger, and Maverick. With no glass panels and full metal enclosure on all four sides, it delivers maximum structural rigidity, superior impact resistance, and serious cargo security — purpose-built for demanding off-road, commercial, and overlanding environments.
✅ Perfect Fit: Designed exclusively for the Ford F-150 / Raptor (2010–2026), F-150 Lightning (2022–2026), F-250 / F-350 (2017–2026), Ranger (2019–2026), and Maverick (2022–2026). Available in multiple bed sizes — see weight specifications table for your exact fitment.
Roof Load Performance Ratings
| Material | Dynamic Load | Static Load |
|---|---|---|
| Aluminum Alloy | 470 lbs | 1,020 lbs |
| Stainless Steel | 540 lbs | 1,150 lbs |
Weight Specifications
| Model & Year | Bed Size | Aluminum Alloy | Stainless Steel |
|---|---|---|---|
| Ford F-150 / Raptor 2021–2026 | 5' 5" Bed | 198 lbs | 276 lbs |
| Ford F-150 2021–2026 | 6' 5" Bed | 212 lbs | 298 lbs |
| Ford F-150 / Raptor 2015–2020 | 5' 5" Bed | 198 lbs | 276 lbs |
| Ford F-150 2015–2020 | 6' 5" Bed | 212 lbs | 298 lbs |
| Ford F-150 Raptor 2010–2014 | 5' 5" Bed | 196 lbs | 275 lbs |
| Ford F-250 / F-350 2023–2026 | 6' 8" Bed | 223 lbs | 329 lbs |
| Ford F-250 / F-350 2017–2022 | 6' 8" Bed | 223 lbs | 329 lbs |
| Ford Ranger 2024–2026 (Crew Cab) | 5' Bed | 150 lbs | 234 lbs |
| Ford Ranger 2019–2023 (Crew Cab) | 5' Bed | 150 lbs | 234 lbs |
| Ford Ranger 2019–2023 (Extended Cab) | 6' Bed | 181 lbs | 262 lbs |
| Ford F-150 Lightning 2022–2026 | 5' 7" Bed | 201 lbs | 291 lbs |
| Ford Maverick 2022–2026 | 4' 5" Bed | 116 lbs | 199 lbs |
Key Features
- Full Metal Enclosure — No Glass — All four sides are constructed entirely from metal with no glass panels, delivering maximum structural rigidity, impact resistance, and cargo security. Built for environments where standard caps simply are not enough.
- Single-Key Security System — Push-button locking on all three doors. One key operates everything, with no exposed mechanisms to freeze or corrode.

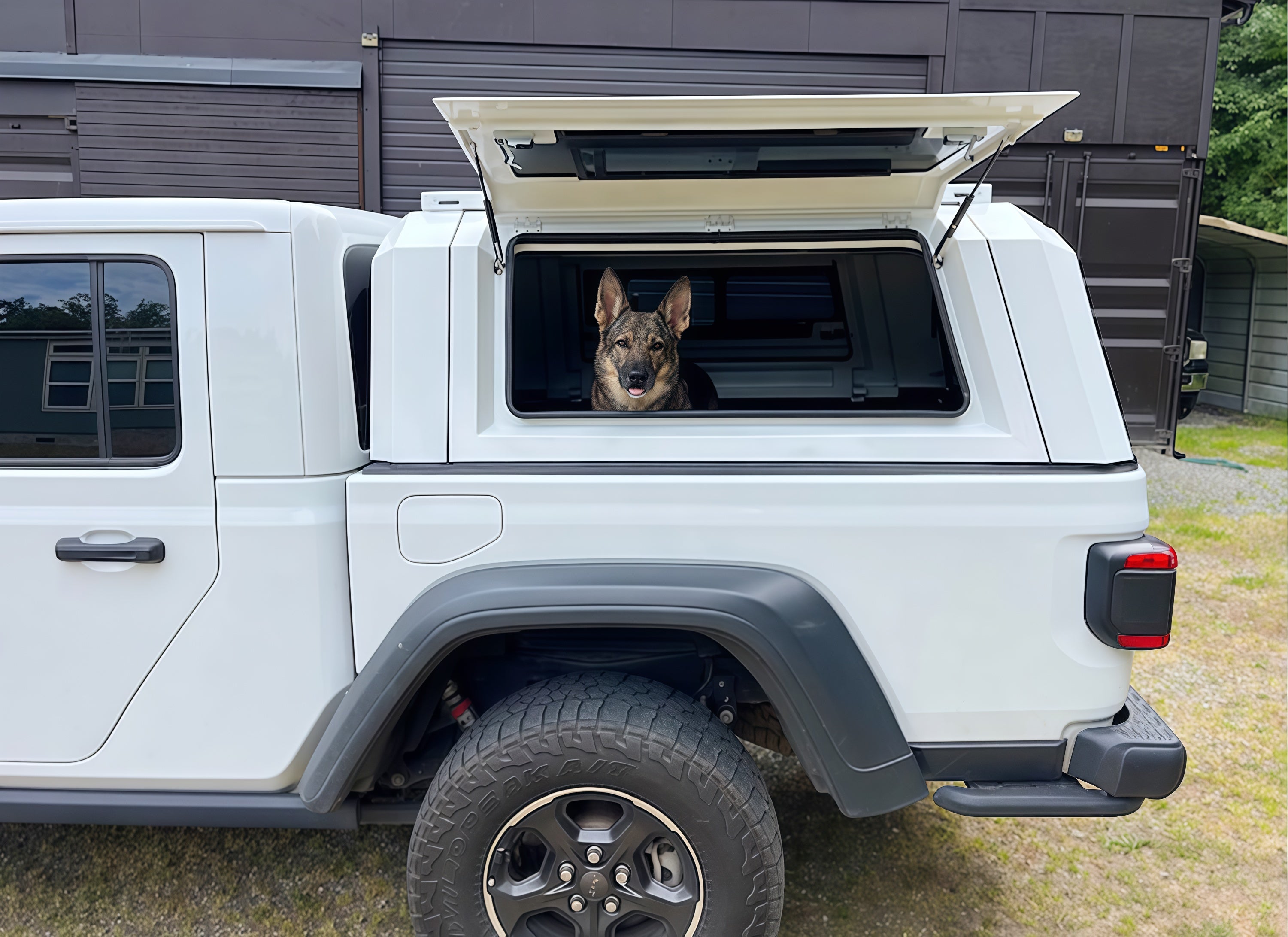

- Gull-Wing Side Doors — 17% more opening height than standard fiberglass caps. Easier cargo loading, unloading, and access to the sleeping or storage area.
- High-Level Weatherproof Sealing — Engineered to resist rain, snow, dust, and harsh environmental conditions. Cargo stays protected in all weather.
- Aerodynamic Design — Reduces drag and improves fuel efficiency at highway speeds while maintaining a rugged, armored appearance.
- Hydraulic Strut Doors — All three access panels open and close smoothly with hydraulic support struts.
- Modular Roof Rail System — Supports rooftop tents, kayaks, bikes, ladders, and cargo racks. Compatible with most standard roof rack systems.
- No-Drill Clamp Installation — Clamp-based mounting with no drilling required. Individual components can be replaced if damaged.
- Integrated Brake Light — Built-in third brake light for road safety and rear visibility in all conditions.
Install & Removal
- ✅ Full installation in under 1 hour
- ✅ Complete removal in approximately 15 minutes
- ✅ No drilling required — zero damage to your vehicle
Installation Guide
All truck caps are shipped directly to customers and installed after purchase. Installation is straightforward and requires no drilling or permanent modifications to your vehicle. Please follow the official installation tutorial for your specific product series — installation procedures vary across product lines, so it is important to use the correct video for your cap.
▶ Watch Official Installation Tutorial
