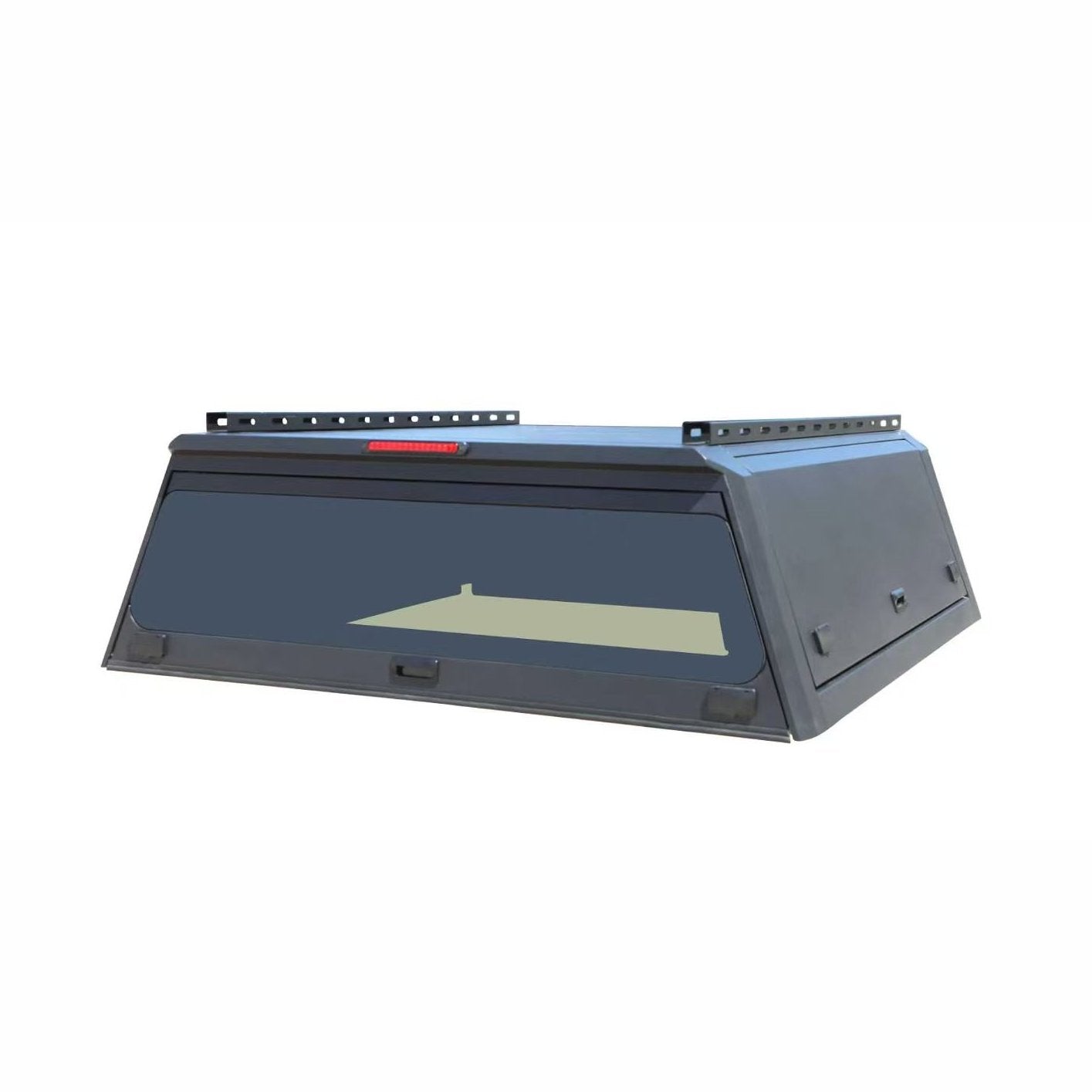

Pioneer Truck Cap For Honda
Estimated delivery time is 7–9 weeks, with products typically shipping within 20–30 days.
Pioneer Truck Cap for Honda Ridgeline — Built for Off-Road, Overlanding, and Heavy-Duty Utility.
The Pioneer Truck Cap is a rugged, high-performance truck cap designed specifically for the Honda Ridgeline. Built from high-grade aluminum alloy or stainless steel with a distinctive wing-style metal side door construction, it delivers superior impact resistance, cargo protection, and all-weather reliability for drivers who demand more from their gear.
✅ Perfect Fit: Designed exclusively for the 2017–2026 & 2005–2014 Honda Ridgeline with a 5' bed.
Roof Load Performance Ratings
| Material | Dynamic Load | Static Load |
|---|---|---|
| Aluminum Alloy | 470 lbs | 1,020 lbs |
| Stainless Steel | 540 lbs | 1,150 lbs |
Weight Specifications
| Model & Year | Bed Size | Aluminum Alloy | Stainless Steel |
|---|---|---|---|
| Honda Ridgeline 2017–2026 | 5' Bed | 159 lbs | 225 lbs |
| Honda Ridgeline 2005–2014 | 5' Bed | 159 lbs | 225 lbs |
Key Features
- Wing-Style Metal Side Doors — Heavy-duty metal construction on the side doors significantly increases structural strength and impact resistance. Purpose-built for off-road and harsh working conditions where standard fiberglass caps fall short.
- Tempered Glass Front & Rear Panels — Large tempered glass panels on the front and rear doors expand the driver's rearward field of view for safer driving and maneuvering.
- Gull-Wing Side Doors — 17% more opening height than standard fiberglass caps. Easier cargo loading, unloading, and access to the sleeping area.
- Single-Key Security System — Push-button locking on all three doors with weather-sealed lock covers. One key operates everything.
- Aerodynamic Tail Wing — Integrated rear spoiler reduces drag and wind turbulence at highway speeds.
- MOLLE Panel System — Safety & Organization Upgrade — Interior MOLLE panels are a key safety enhancement, securing loose gear and preventing cargo shift during transit. Also supports modular storage for tools, outdoor equipment, and tactical kit.
- Modular Roof Rail System — Supports rooftop tents, kayaks, bikes, ladders, and cargo racks. Compatible with most standard roof rack systems.
- No-Drill Clamp Installation — Clamp-based mounting with no drilling required. Individual components can be replaced if damaged.
- Hydraulic Strut Doors — All three access panels open and close smoothly with hydraulic support struts.
- Weatherproof Construction — Elastomeric sealants and stainless steel hardware at every joint. Resistant to water, snow, dust, and corrosion.
- Concealed Hinges & Integrated Brake Light — Clean, factory-matched exterior profile with a built-in third brake light for road safety.
Install & Removal
- ✅ Full installation in under 1 hour
- ✅ Complete removal in under 15 minutes
- ✅ No drilling required — zero damage to your vehicle
Installation Guide
All truck caps are shipped directly to customers and installed after purchase. Installation is straightforward and requires no drilling or permanent modifications to your vehicle. Please follow the official installation tutorial for your specific product series — installation procedures vary across product lines, so it is important to use the correct video for your cap.
▶ Watch Official Installation Tutorial
